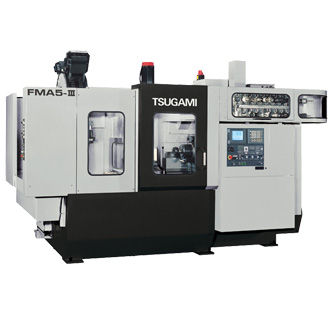

HIGH SPEED PRECISION HORIZONTAL MACHINING CENTERFMA5-Ⅲ

Space saving and long time unattended
operation is possible by original vertical pallet


●Vertical-type pallet system of this machine permits free-chip-flow structure.
High accuracy is achieved even in unattended operation.
●ATC tool-to-tool time : 1.0sec.
X/Y-axis rapid traverse rate : 20m/min
Z-axis rapid traverse rate : 24m/min
A/B-axis indexing : 3.6sec./180°
 Idle time is reduced.
●Wide variety of versions are available to meet user’s requirements.
