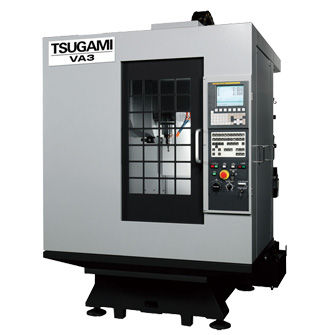

HIGH SPEED VERTICAL MACHINING CENTERVA3

High productivity reduces total cost
High speed machining center with BT30


●48 m/min X, Y and Z axes rapid traverse rate
●20,000 min-1 max. spindle speed
●The spindle is separated from the ATC arm and the tool magazine.
●Since the tool magazine is fixed to the column top, the position of magazine will not affect the tooling area. Only the spindle moves up and down so that tooling design becomes easy.
●20 tools can be stored in the tool magazine as standard.
(Maximum mountable tool number: 21 tools)
●The tool can be inserted directly into the spindle or removed from the spindle manually from the front of the machine.
Storing tool into the tool magazine will be easy.
