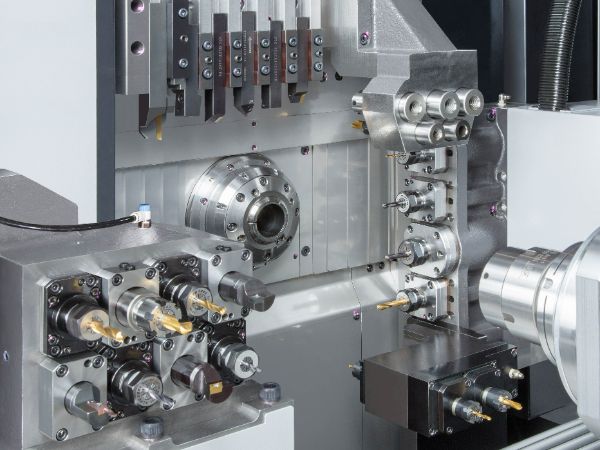

Large tooling space provides suitable tooling according to the application

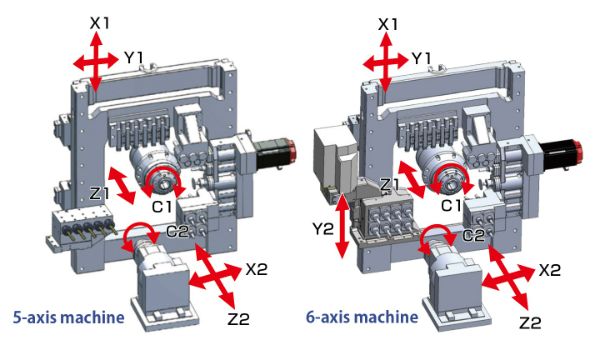

●The back tool post with Y axis enables the simultaneous operation of back side complex machining with main side machining. (6-axis machine)
●Modular tooling enables optimal tool allocation.
●Optional direct-drive guide bushing provides high-speed and accurate machining.
●Guide-bush type or guide-bushless type is selectable according to the workpiece. (Option) (L type is a dedicated guide‑bushless machine.)
●Automatic programming software is provided as standard.
●hermal displacement compensation ensures long‑term stable machining.
●Enlarges the spindle ID, and bar end pre-turning is not necessary.
