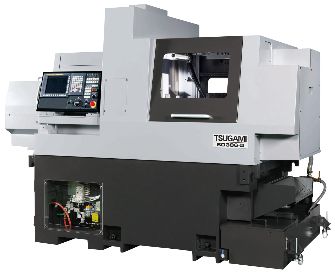

CNC Precision Automatic LatheB038-Ⅲ series

Versatile functions on the compact body
Enhanced variations and extensive options support diversified workpieces

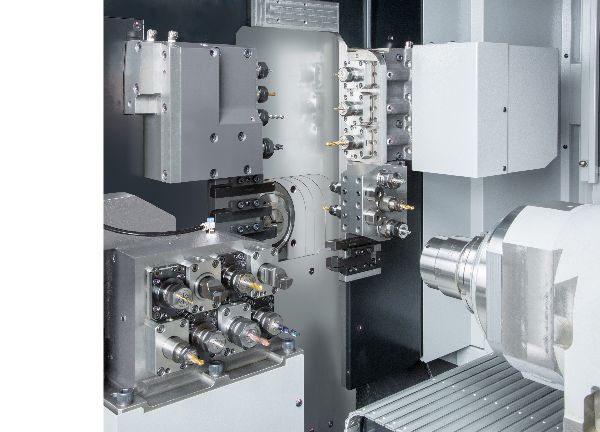

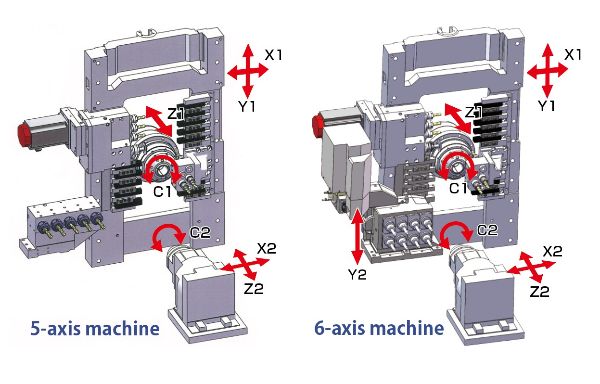

●The back tool post with Y axis enables the simultaneous operation of back side complex machining with main side machining. (6-axis machine)
●Modular tooling enables optimal tool allocation. (Rear drive is an option.)
●Optional direct-drive guide bushing provides high-speed and accurate machining.
●Guide-bush type or guide-bushless type is selectable according to the workpiece. (Option) (L type is exclusive for guide-bushless machine.)
●Automatic programming software is provided as standard.
●Thanks to the thermal displacement compensation, the long-term stable production is realized.
●Enlarges the spindle ID, and bar end pre-turning is not necessary.
●"Al contour control Ⅱ and high-speed CPU" (option) enable high speed machining. (B0385B-Ⅲ/B0385LB-Ⅲ/B0386-Ⅲ/B0386L-Ⅲ)
