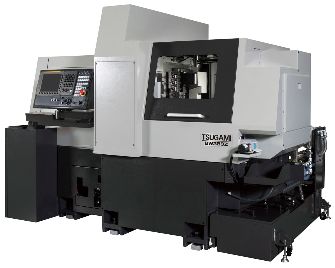

Ø38 mm independent opposed gang tool post machine
High rigidity, precision machining, and optimized cycle time

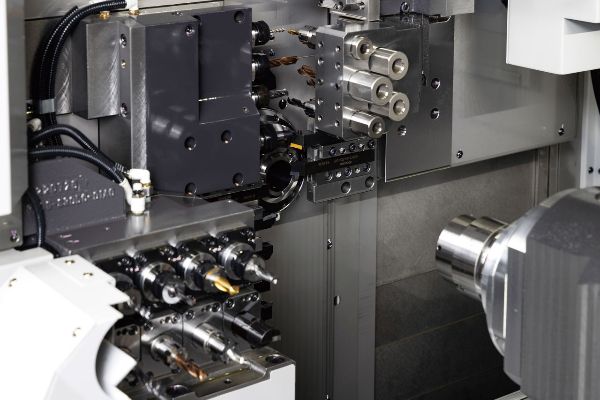

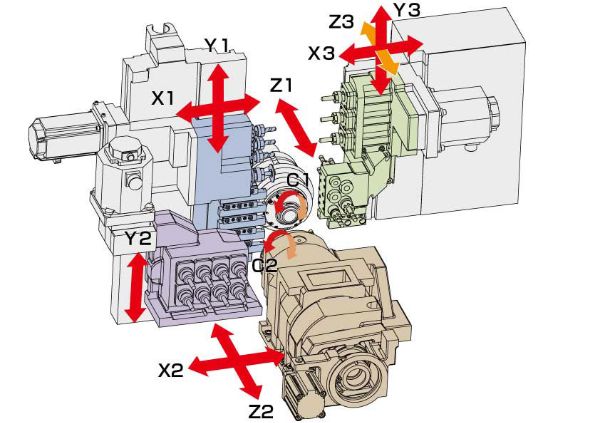

●The combination of independent opposed tool posts and the back tool post with Y axis enables simultaneous multi-process machining.
●Independent opposed tool post minimizes the tool change time by calling the next tool on the other side tool post.
●Modular tooling enables optimal tool allocation. Achieves high productivity with appropriate tooling and machining patterns.
●Realizes heavy-duty machining of Ø38 mm bar by securing rigidity through machine optimization based on structural analysis.
●Spindle with hydraulic cylinder ensures stable chucking force regardless of bar material grade. (Option) (BW388/BW389Z)
●Guide-bushless dedicated spindle enables high precision machining for short-length workpieces.
●Guide-bush type or guide-bushless type is selectable according to the workpiece. (Option) (BW388/BW389Z)
●Machining condition preset function enables easy creation of complex simultaneous machining programs.
The program size is reduced to one-third by using simultaneous machining patterns through dedicated G codes.
●Automatic programming software is provided as standard.
