CNC Lathe with 10 inch chuck
Turning Center with live tools.

●18.5kW high-output built-in motor on the spindle realizes powerful drive.
●Enables heavy-duty cutting of large diameter workpieces with high-rigidity box slide for X axis.
●Secures the stable geometrical accuracy and the surface roughness by adopting the built-in motor.
●NC tailstock (option) minimizes setup time by the simplified adjustment.
●The coolant tank can be pulled out to the machine front side without taking out the chip conveyor, making it easy to clean.
●Conversational programming software is provided as standard.

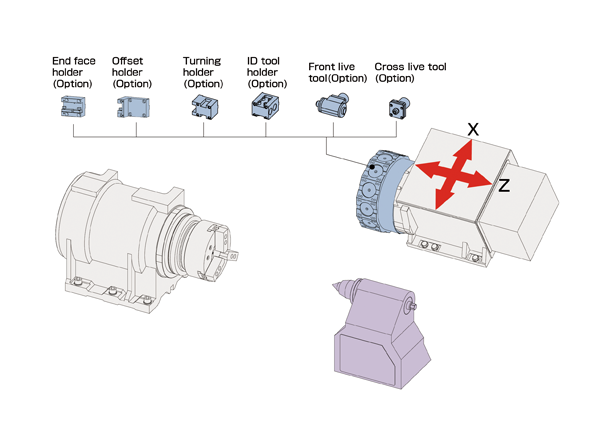

●Powerful milling capability achieved by live tools with high-power and high-torque motor.
