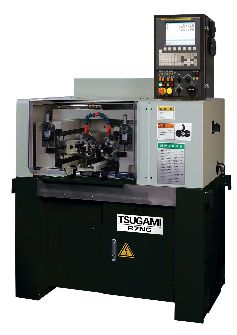

CNC precision thread and form rolling machineR7NC

In-feed thread rolling machine
Through-feed thread rolling is also enabled by adding options.

●Though-feed or in-feed thread rolling machine for small workpieces Fine adjustment of spindle inclination with a digital indicator (option)
●Space saving (floor space: 1.2 m2)

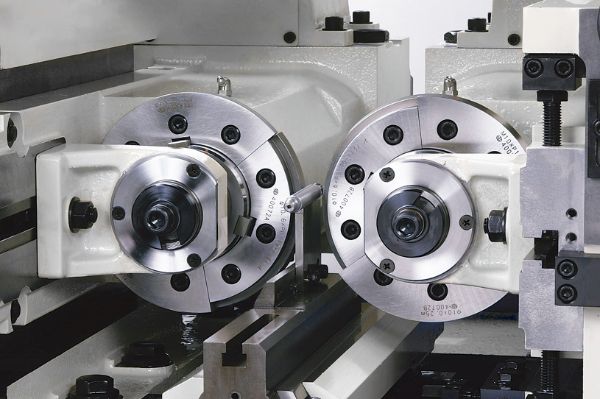

●Both right and left spindles are driven by the independent servo motors respectively.
High accuracy thread rolling is possible by eliminating pitch error using synchronous rotation control.
●Pitch setting of rolling dies can be done by entering numerical values on the screen.
●Data of machining conditions and offset values are stored in the NC as numerical data, and it is easy to reproduce the conditions.
