Turning CenterB020M-Ⅲ SS20MH-Ⅲ-5AX

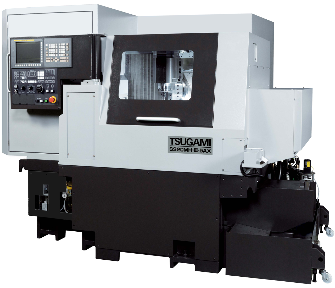

Productive combined machine by the integration of sliding headstock type automatic lathe and machining center
Complete machining of complex-shaped workpieces up to Ø20mm by compact single machine (4.76m2)

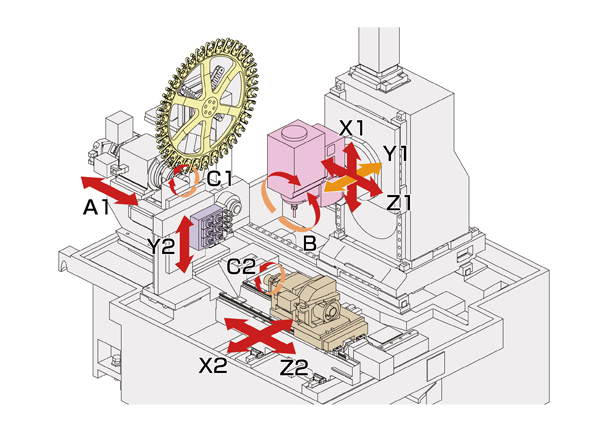

●Complete machining of complex-shaped workpieces from bar stock by 5-axis simultaneous control (SS20MH-Ⅲ-5AX)
●Tool magazine capable with 30 tools storage for long-term automatic operation
●Corresponds to long or short workpiece

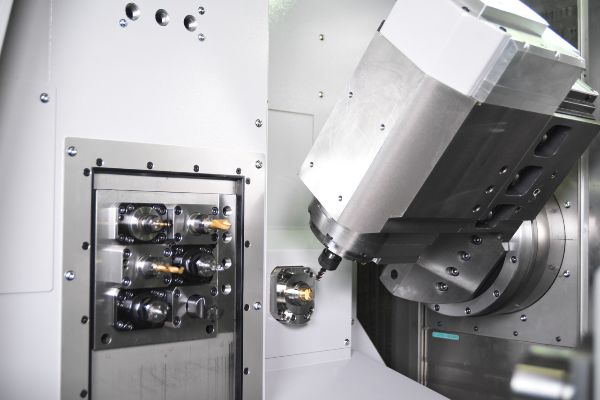

●Tool spindle with high-output built-in motor achieves high-efficiency milling.
●Dual contact holder (CAPTO C3) for heavy-duty machining
●Equipped linear scale on X1, Z1, Y1, and X2 axis for accurate machining (SS20MH-Ⅲ-5AX).

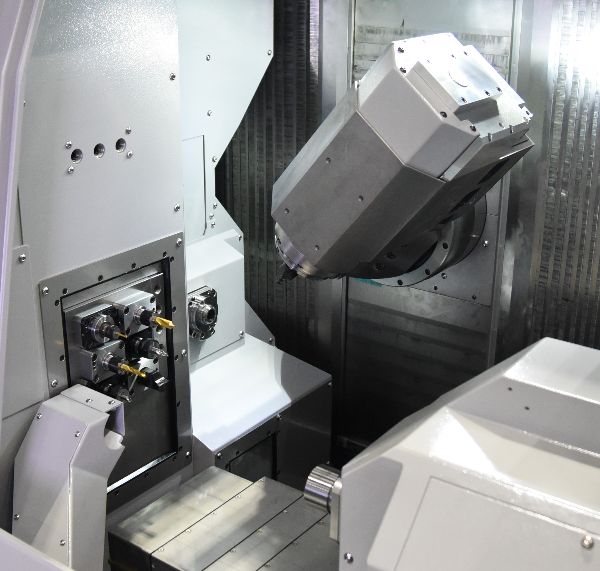

●The back tool post with Y axis enables the simultaneous operation of back side complex machining and main side machining.
●3-dimensional interference check function detects interference before it occurs, and the machine is stopped by alarm.
